SSU5000A Mechanical Switch
Main Features
- Maximum frequency: 18 GHz/ 26.5 GHz/ 50 GHz
- 1 to 4 SPDT switches or 1 to 2 SP6T switch configurations
- SCPI Controllable via VISA and EasySSU software

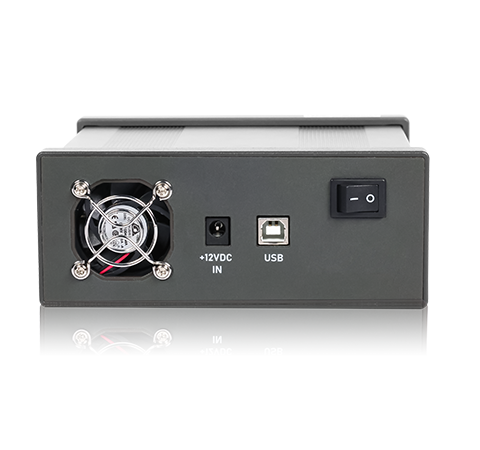

- USB Connectivity
- Size: W×H×D=153×62.4×137.5mm
- RF connector: SMA female or 2.4mm female
×

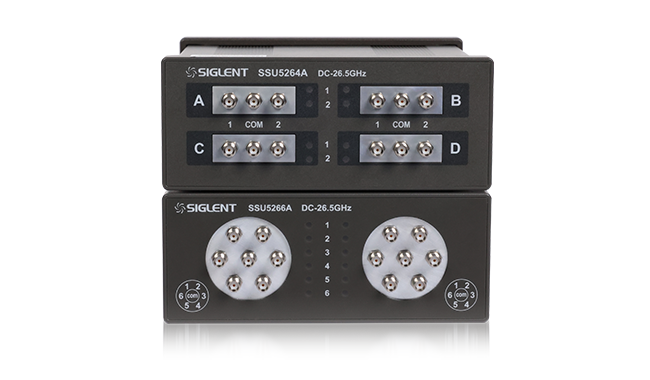

Compact Design, Fast Measurement
In order to meet the multi-port test requirements of microwave and millimeter wave systems, SIGLENT has introduced SSU5000A series mechanical switches with frequency range up to 50 GHz. The SSU5000A has compact design, excellent RF characteristics, low insertion loss, great impedance matching and extraordinary short switching time. It contains 1-4 independent single-pole double-throw mechanical switches with SMA or 2.4 mm connectors, or single-pole six-throw mechanical switches.
Model
Frequency Range
Number of Switches
Switch Type
RF Connector
Price
SSU5504A
DC – 50 GHz
4
SPDT
2.4mm female
$8,875
SSU5503A
DC – 50 GHz
3
SPDT
2.4mm female
$7,531
SSU5502A
DC – 50 GHz
2
SPDT
2.4mm female
$5,155
SSU5501A
DC – 50 GHz
1
SPDT
2.4mm female
$4,845

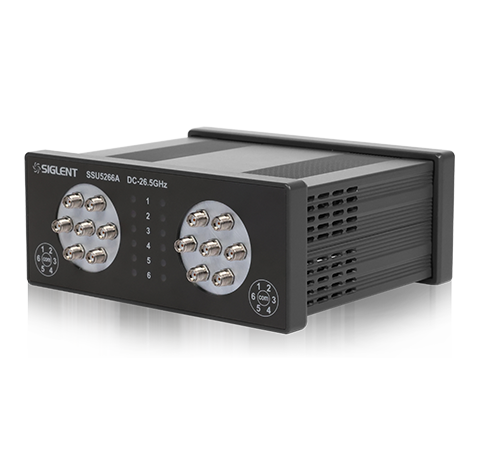

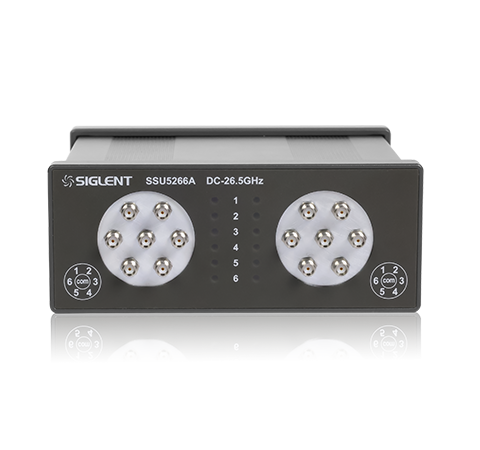

SSU5266A
DC - 26.5 GHz
2
SP6T
SMA female
$6,291
SSU5265A
DC - 26.5 GHz
1
SP6T
SMA female
$3,191
SSU5264A
DC - 26.5 GHz
4
SPDT
SMA female
$2,985
SSU5263A
DC - 26.5 GHz
3
SPDT
SMA female
$2,778
SSU5262A
DC - 26.5 GHz
2
SPDT
SMA female
$2,571
SSU5261A
DC - 26.5 GHz
1
SPDT
SMA female
$2,365
SSU5184A
DC - 18 GHz
4
SPDT
SMA female
$1,930
SSU5183A
DC - 18 GHz
3
SPDT
SMA female
$1,827
SSU5182A
DC - 18 GHz
2
SPDT
SMA female
$1,725
SSU5181A
DC - 18 GHz
1
SPDT
SMA female
$1,620
