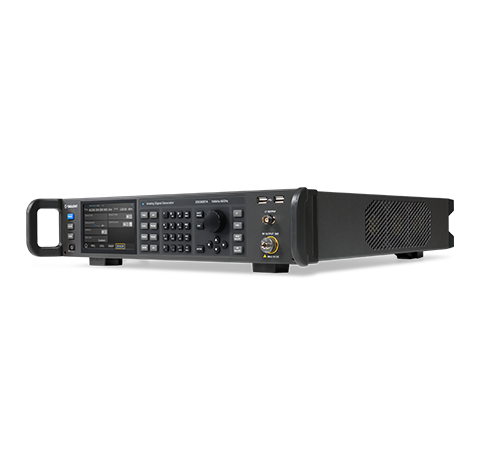

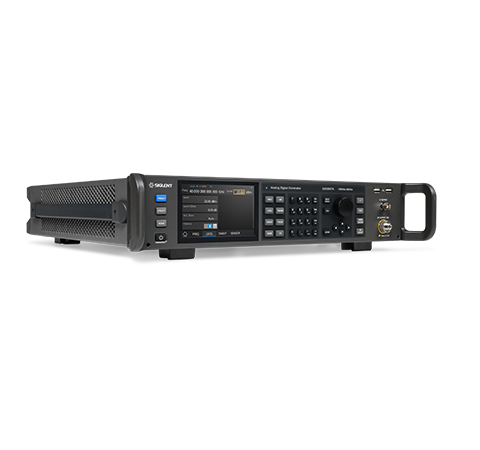

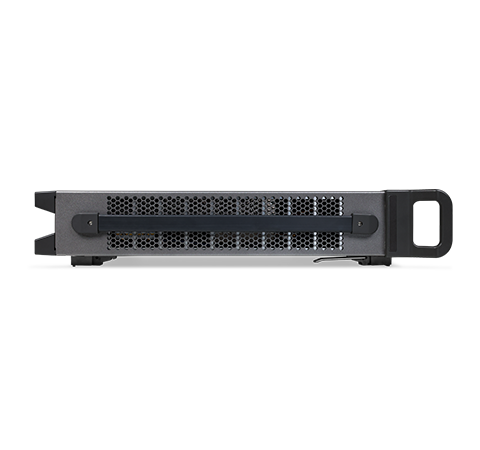

SSG6000A Series Microwave Analog Signal Generator
Main Features
  • Frequency up to 13.6 GHz/ 20 GHz/ 40 GHz
  • Level setting range: -130 dBm ~ 24 dBm
  • Phase Noise: -135 dBc / Hz @ 1 GHz, 20 kHz offset (typ.)
  • Level error ≤ 0.7 dB (typ.)
  • Standard AM modulation
  • Standard OCXO and step attenuator (0 to 110 dB, 10dB step)
  • Pulse modulation and pulse train generator (opt.)
×

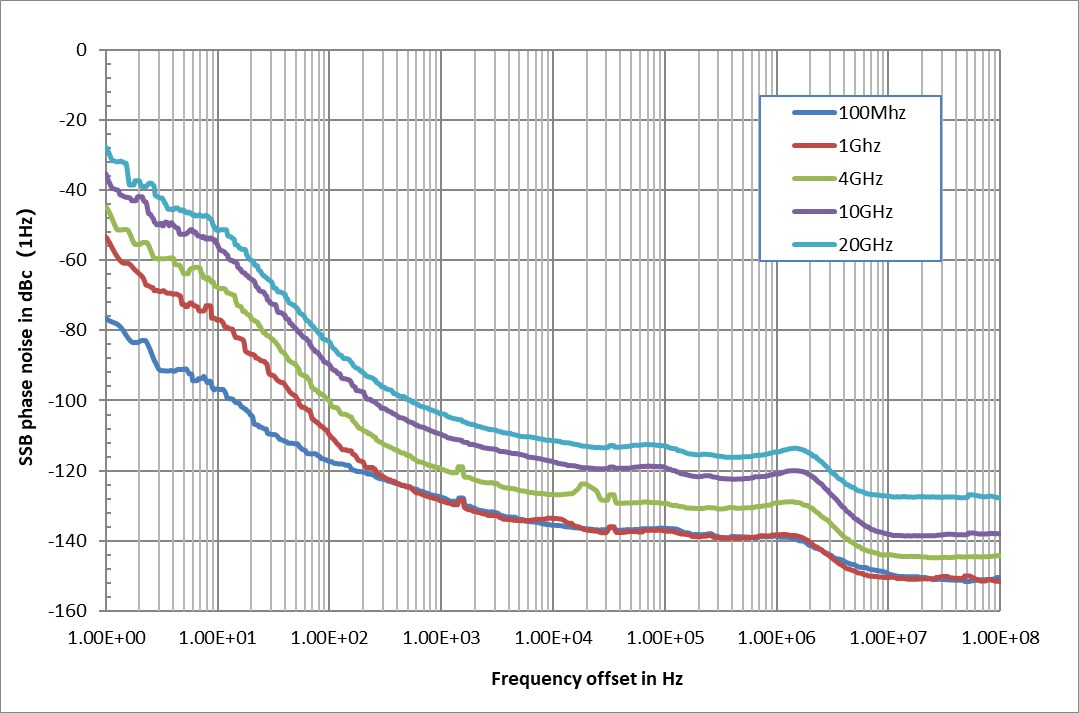

Excellent SSB Phase Noise
The SSG6000A signal generator is built to deliver outstanding signal purity across a broad frequency range of 100 kHz to 40 GHz, even at high output power levels. Excellent phase noise of -135 dBc/Hz, low sub harmonic signal components of < –80 dBc and low broadband noise of –155 dBc gives you confidence that you are testing your device and not the limits of your instrumentation. Coupled with exceptional frequency and power stability, the SSG6000A is a great solution for applications including LO emulation, receiver, ADC/DAC, and components testing

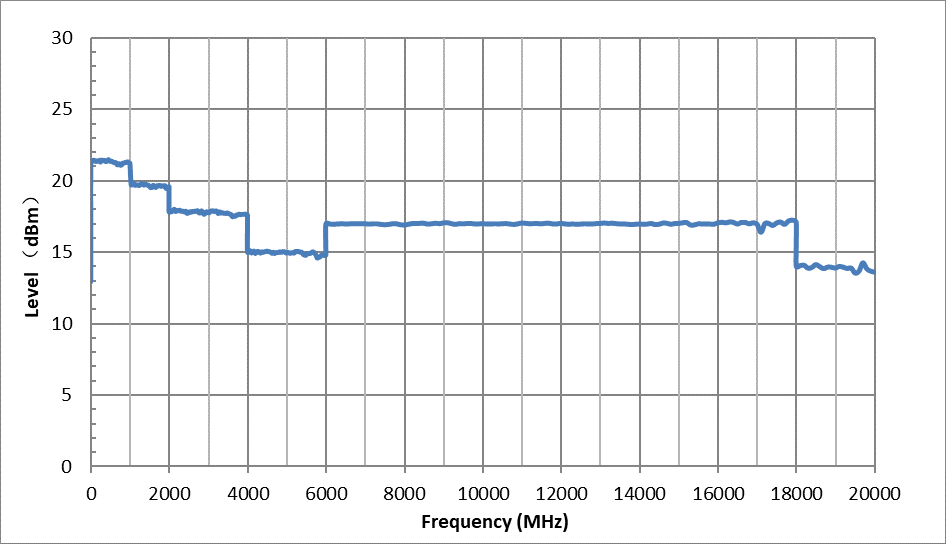

High and Stable Output Power
SSG6000A has high frequency and power stability in the working temperature range of 0~50℃. Long term stability is important in aging and lifecycle tests that can last days or weeks. With standard OCXO reference hardware module inside ensures high-precision and high stability signal output. High output power of +22 dBm can test high-power devices without an external amplifier, and overcome the loss of the test system with more accurate and stable. The combination of high output power, low harmonics and standard step attenuation is suitable for characterizing broadband microwave components such as filters and amplifiers.

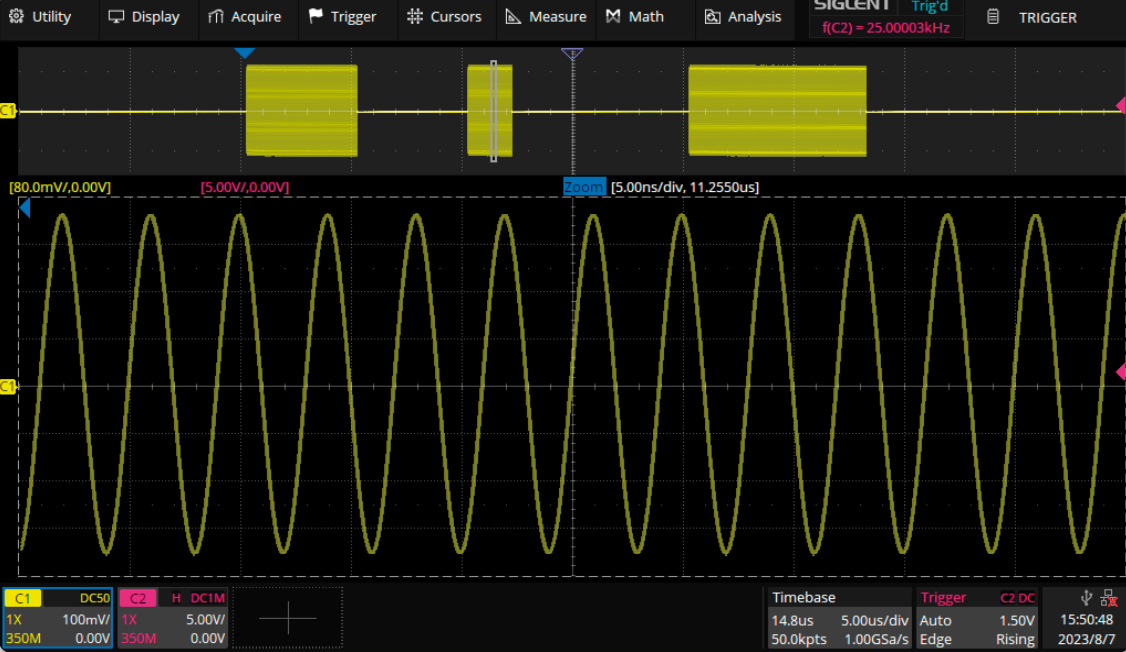

Pulse Generator
SSG6000A supports AM and pulse modulation, pulse sequence generator, power meter control and other functions. Pulse modulation on/off ration is more than 80 dB, and the rise/fall time is less than 15 ns. Pulse train generator has pulse width of 20 ns ~ 300 s and as many as 2047 different pulses. The pulse repetition period can be changed from 1 to a maximum of 65,535 which produces a very long pulse train that can be used for testing. SSG6000A generates staggered pulse groups and pulse pauses. The pulse width and the pulse pause can be set independently and separately for each pulse. SSG6000A meets the need of fast scanning in broadband test with step/list scanning mode.
Specifications
Frequency Range 100 kHz ~ 13.6/20/40 GHz
Frequency resolution 0.01 Hz
Amplitude resolution 0.01 dB
Phase Noise -135 dBc/Hz  @ 1 GHz, offset 20 kHz (typ.)
Level error ≤  0.7 dB (typ.)
AM modulation Standard

Level setting range - 130 dBm ~ + 24 dBm
Maximum output power + 22 dBm
Other characteristics Pulse modulation, Pulse generator, Pulse train generator
Display 5 inch capacitance touch screen, RGB (800*480)

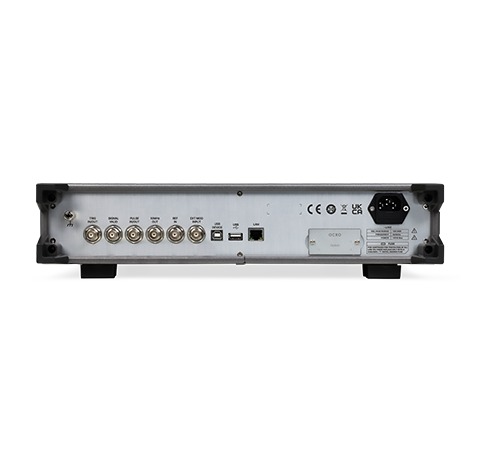

Interface Standard: USB Host, USB Device (USB TMC), LAN (VXI-11, Socket, Telnet); Option: GPIB
Model
Frequency Range
Frequency Resolution
I/Q Modulation
Max output power
Phase Noise
Display
SSG6083A
100 kHz ~ 13.6 GHz
0.01 Hz
No
+22 dBm
-135 dBc/Hz @1 GHz, offset 20 kHz(typ.)
5 inch capacitance touch screen, RGB (800*480)
HOW TO BUY
SSG6085A
100 kHz ~ 20 GHz
0.01 Hz
No
+22 dBm
-135 dBc/Hz @1 GHz, offset 20 kHz(typ.)
5 inch capacitance touch screen, RGB (800*480)
HOW TO BUY
SSG6087A
100 kHz ~ 40 GHz
0.01 Hz
No
+22 dBm
-135 dBc/Hz @1 GHz, offset 20 kHz(typ.)
5 inch capacitance touch screen, RGB (800*480)
HOW TO BUY
