SDS1000CML+ Series Digital Storage Oscilloscopes
Main Features
- Bandwidth 100 MHz, 150 MHz
- Memory depth 2 Mpts
- Sampling rate 1 GSa/s, equivalent sampling rate 50 GSa/s
- 2 Channels + EXT Trig channel
- USB Host & Device，LAN，Pass/Fail interface
×

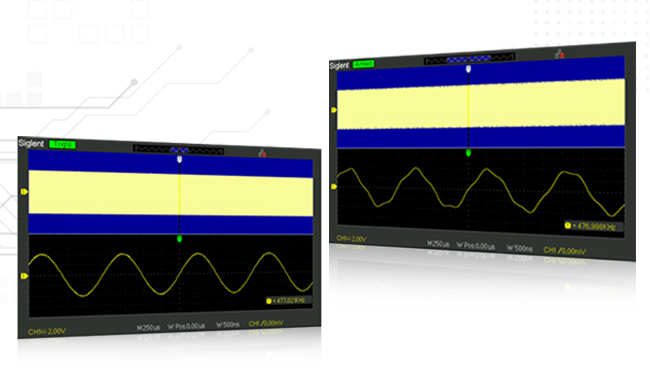

Deep Memory Mode With One Button Zoom, See the Overall and Details at the Same Time
The SDS1102CML+/SDS1152CML+ have deep memory mode with memory depth up to 2 Mpts. And the SDS1000CML+/DL+ has the function of one button Zoom. It can zoom in the part of signal interested in and makes it extremely convenient to observe, measure and analyze the signal.
In deep memory mode, you can acquire longer signals at a higher sampling rate. And then use the one button Zoom function to quickly zoom in the interested part, ensuring fine waveform resolution.
In deep memory mode, you can acquire longer signals at a higher sampling rate. And then use the one button Zoom function to quickly zoom in the interested part, ensuring fine waveform resolution.
Powerful Data Analysis and Save Capabilities

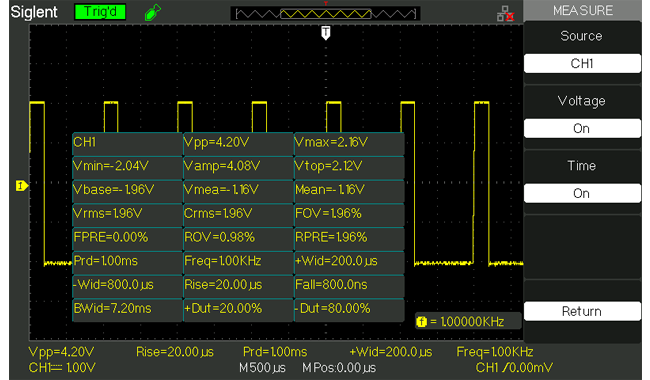

The SDS1000CML+/DL+ series supports 32 kinds of parameters measurement, relating to voltage, time and delay. You can configure 5 kinds of parameters to display at the screen bottom or to display all measurements at the same time.
The SDS1000CML+/DL+ series supports five kinds of mathematical operations: +, -, *, /, FFT. The results, waveform data and screenshots can be saved to the USB memory by simply press the Print button.
The SDS1000CML+/DL+ series supports five kinds of mathematical operations: +, -, *, /, FFT. The results, waveform data and screenshots can be saved to the USB memory by simply press the Print button.
Abundant Interfaces and Remote Control

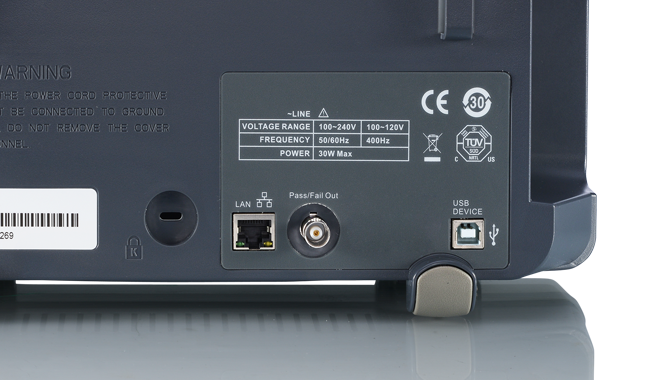

The interfaces supported by the SDS1000CML+/DL+ series include
-USB Host Save data and pictures to external USB memory
-USB Device Connect to PC and perform remote control via free EasyScope software
LAN (VXI-11) Provide internet capability to perform remote control such as send SCPI commands
Pass/Fail interface Output pulses during Pass/Fail test
-USB Host Save data and pictures to external USB memory
-USB Device Connect to PC and perform remote control via free EasyScope software
LAN (VXI-11) Provide internet capability to perform remote control such as send SCPI commands
Pass/Fail interface Output pulses during Pass/Fail test
Model
Bandwidth
Channels
Real time sampling rate
Capture rate
Memory depth
SDS1102CML+
100 MHz
2+EXT
1 GSa/s
-
2 Mpts
SDS1152CML+
150 MHz
2+EXT
1 GSa/s
-
2 Mpts
