SNA5000A Vector Network Analyzer

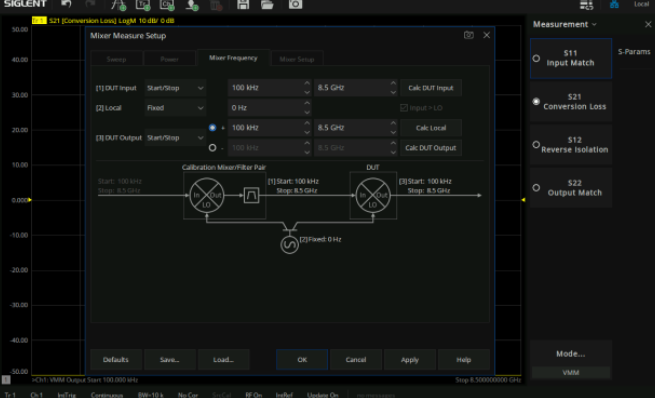

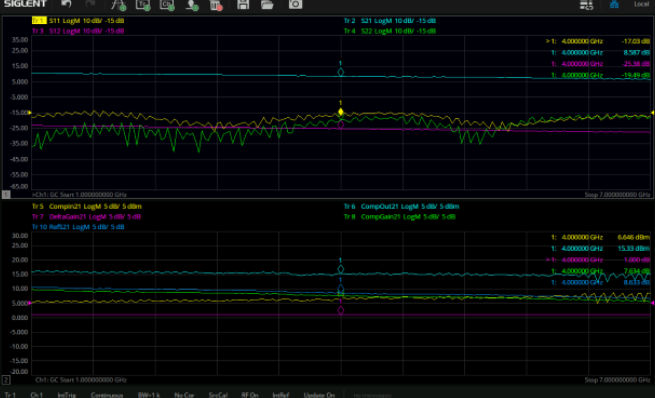

Features
- Frequency range: 9 kHz ~ 8.5 GHz and 100 kHz - 26.5 GHz
- Setting range of output level: -55 dBm ~ +10 dBm
- Dynamic range: 125 dB
- Support 2/4-ports scattering-parameter, differential-parameter, and time-domain parameter measurements
- Support one-key measurement of Q-factor, bandwidth and insertion loss of a filter
- Support impedance conversion, fixture simulation and adapter removal/insertion adjustments
- Optional spectrum analyzer and TDR functions
×
Calibration and RF Measurements using VNA Siglent SNA5000A- 4 ports
The following are some recommended common practices when performing any RF measurement.
The following are some recommended common practices when performing any RF measurement.
Download
More
- Use good quality RF cables. Double shielded with tin foil is recommended for phase stability and isolation.
- Use properly power rated RF cables.
- Use properly frequency rated connector type.
- BNC type is rarely used above 500 MHz sense they do not provide a secure connection. Very leaky and repeatability of measurement is difficult. Avoid using above 100 MHz.
- See table below as guidance. ( https://www.arworld.us/resources/Guide-to-RF-Coaxial-Connectors-and-Cables.asp).
- Use correct mating types with connectors and adaptors
- See table below as guidance. (https://na.support.keysight.com/pna/connectorcare/What_mates_with_what.htm )
- Use a torque wrench as per specification.
- Calibration and measurement – let the cables rest in a natural state with no sharp bends.
- Secure cables (with tape) to avoid moving them during the calibration/measurement and for repeatability.
- When making connections, never turn the load by spinning it. Turn the fitting which will “pull” the load in thus “pushing” the center pin into the female load pin. Spinning the mating will damage the center pins of both connections.
- Clean all connectors and adaptors with isopropyl alcohol and lint free cloth or swab.
- Avoid noisy RF environments when making sensitive measurements that require large dynamic ranges.
